OOW 1918A3 "Jungle BAR" modifications

[velken]

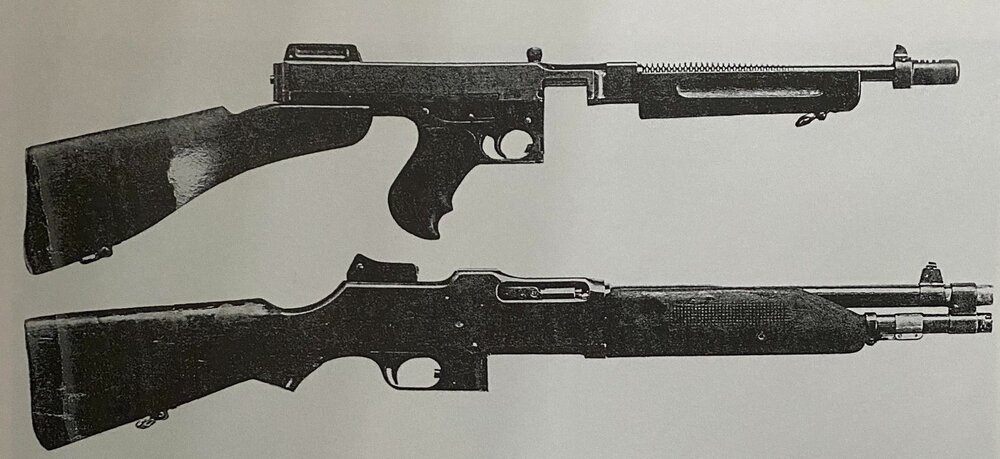

I am interested in modifying an OOW 1918A3 to resemble the experimental "Jungle Warfare BAR" as depicted in the Ballou reference book. Shortening the barrel to 16'' and moving the front sight (and also cutting down the piston and gas tube), installing WWI-pattern stock and handguard, and installing a WWI-pattern rear sight. Also possibly reprofiling the magazine insertion guide to the WWI-pattern without the wings and then maybe even refinishing the whole thing so that it's blued and not parked.

Is this feasible? Do WWI-pattern handguards and stocks fit on the OOW model without modifications? Same thing with the rear sight? And probably most importantly, who is generally regarded as the best gunsmith who works on OOW's to do some (or all) of this work?

Edited September 29, 2023 by velken

[minimike]

OOW makes a 16” BAR, just not in the configuration you want. I would imagine they have most of the parts to assemble one very close to what you want.  Whatever parts they don’t have, BMG or Apex might have.


The question is does OOW have time for a custom build?  They would be my first call.


Deerslayer would be my second call. He could build that for you from an M1918a3 or a A1918.  The A1918 would be easier to do since it is a semi M1918.  You can check out some of his BAR and Colt R80 Monitor builds on YouTube.

Deerslayer’s company


My OOW A1918 and Colt 1911:



PS:

I have been thinking…. A 16” H.C.A.R with M1918 wood, Knight Armament SR25 MAMS muzzle brake, and BAR iron sights front and back would be a cool Modern R80 Monitor.   Drinking Bourbon right now so cut me some slack.

Edited September 30, 2023 by minimike
Spelling

[deerslayer]

The grips attach to the squared part of the gas tube assembly.  This is the same size and shape on original full auto and semi auto guns so grips will fit either.



Ive shortened and moved back the barrel, sight, gas tube, and piston (i spin a new piston on the lathe).



Rear sight fit is also the same between full and ohio semi's.



Cheers!

[jl7422]

That's an interesting project you propose.  Deerslayer would be my go-to guy for a build like this. He's worked with me on a couple of Monitor projects and he's top-flight.  I wish OOW still offered the semi-auto receiver kits. Those worked great for these kinds of projects.

[minimike]

Velken,

Did deerslayer end up making that BAR Jungle Carbine for you?

[velken]

He did! He posted about it in the thread here. Not in my hands quite yet but even without seeing it in person I daresay he did an excellent job as always.



[minimike]

Congratulations!   That is awesome!

[minimike]

On 9/17/2024 at 7:04 PM, velken said:

He did! He posted about it in the thread here. Not in my hands quite yet but even without seeing it in person I daresay he did an excellent job as always.



I just realized it was about a year ago you started this thread inquiring about getting this built.  In that time, you talked to deerslayer, got into his queue for the work, and he got it done.  I’m impressed with how fast all this came together!

[velken]

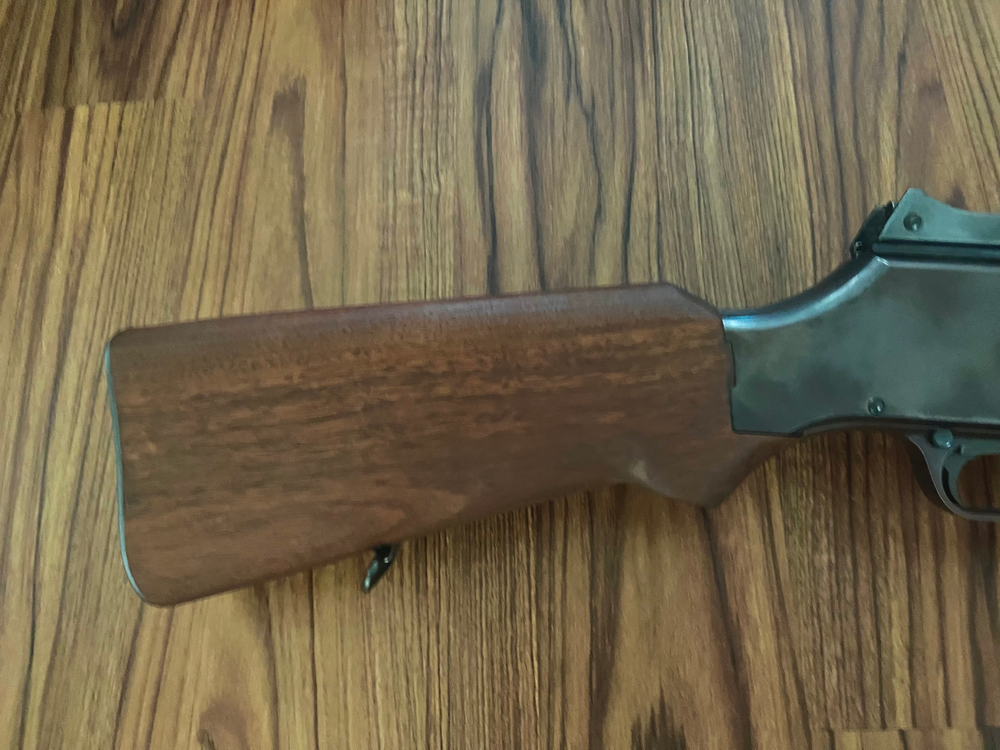

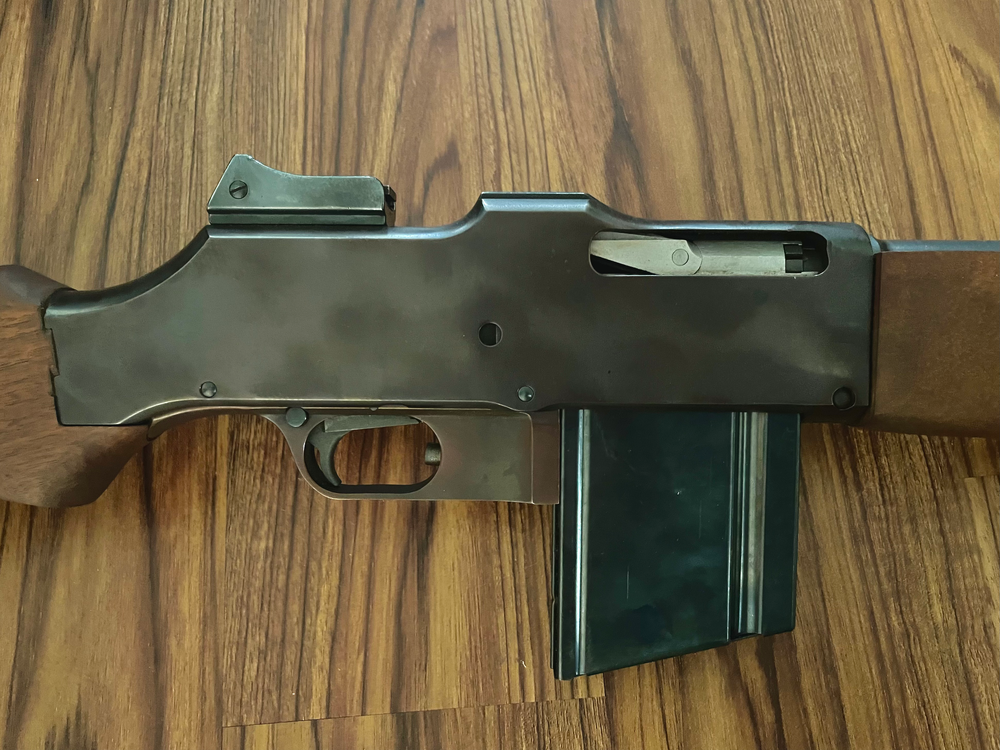

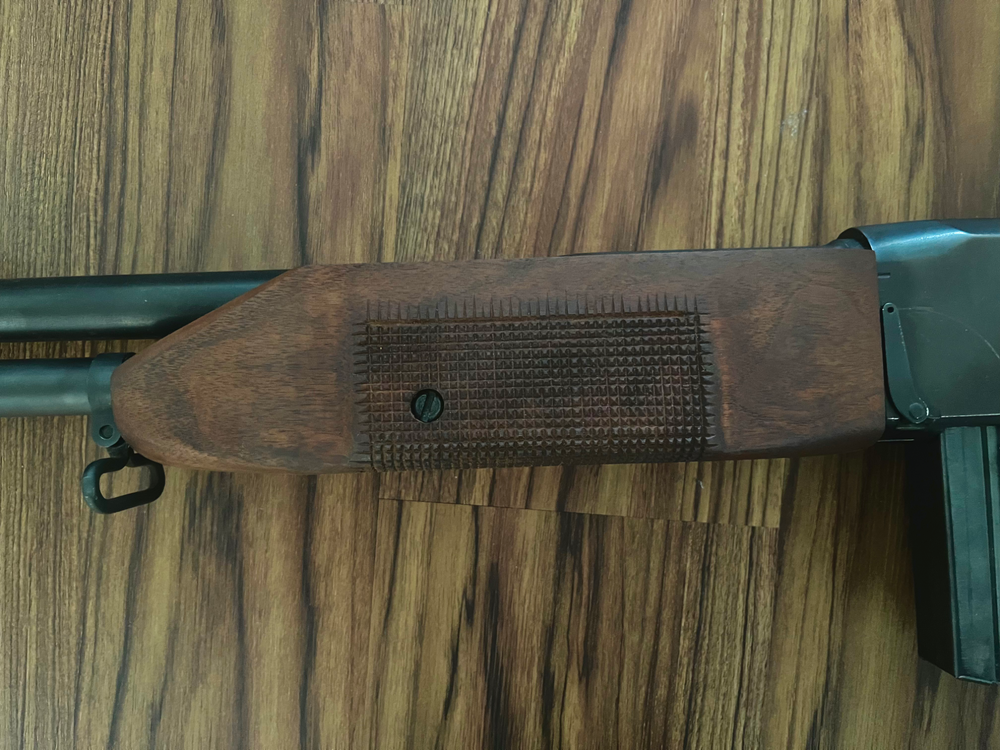

And finally got it back from deerslayer. He really outdid himself this time. And so presto, the Browning automatic rifle, caliber .30, M1918 (modified), as the Marine Corps referred to it as. As far as I know, it's the only firing reproduction of the USMC Jungle BAR anywhere.

Still retains its bulk, but significantly handier, that's for sure. I can see why the Marines thought it was something worthy of further testing.

[minimike]

I can’t stop looking at this, LOL!  Just a fantastic build!
