M3 / M3A1 Grease Gun Stock Catch

[scotty1957****]

I need a blue print or a spare M3 / M3A1 Grease Gun Stock Catch. I want to run a few as they seem to be completely un available. Can I borrow one from anyone?  Thanks in advance,  Rod

[Mongo]

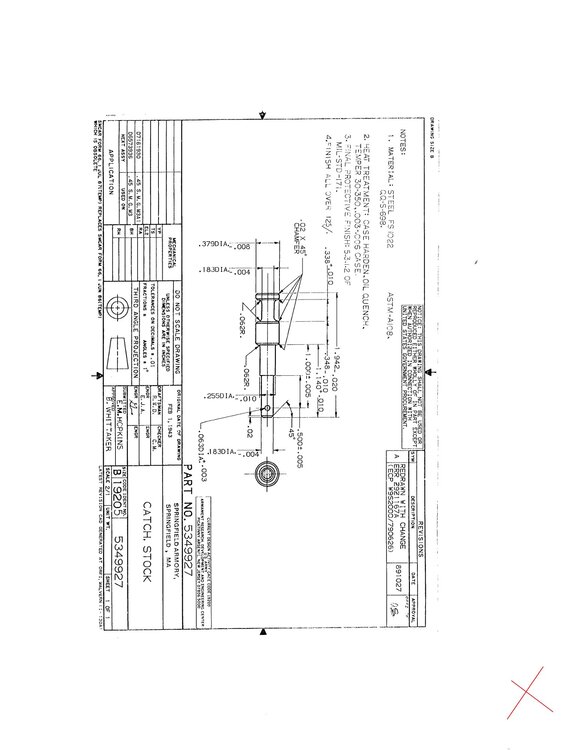

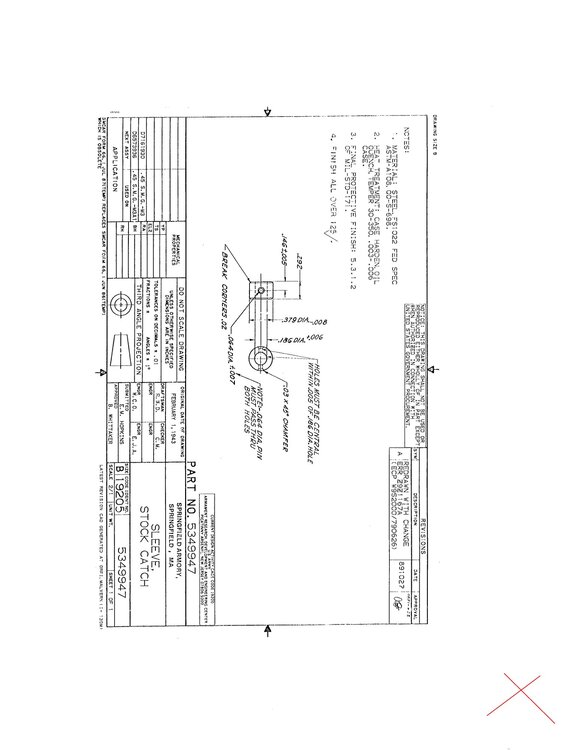

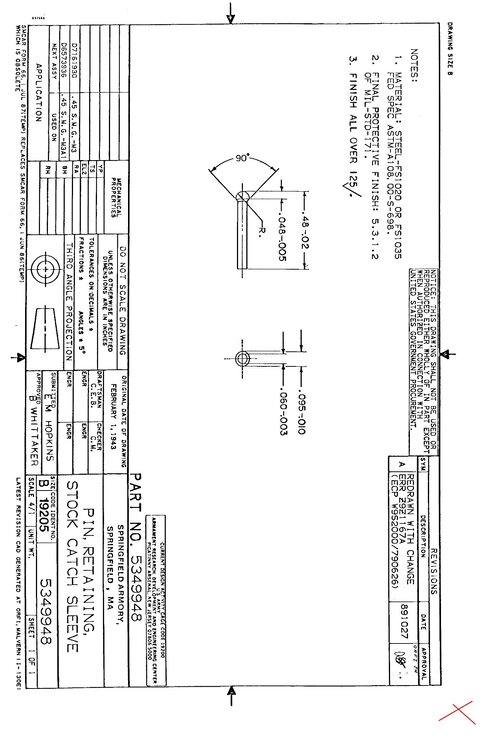

Here you go

[scotty1957****]

Wow1 you are the man!

[justforfun]

Hello:

Mongo, might you have a complete set of plans (working drawings, blueprints) for the M3 grease gun?

I was issued one of these back in the 60s and thought it would be great to make an exact model out of plastic.

Being nearly 80 years old, need to do it sooner than later. ?

If so, what would it take to get a readable copy of such.

Thanks you in advance for your time.

Roy

[Rekraps]

On 10/27/2024 at 12:03 AM, Mongo said:

Here you go

Only you!

[justforfun]

Short update.

I no longer need the blueprints requested, I now have a complete set of working drawings (IGES, STP cad files) for a M3A1 grease gun. These also contain material specs, hardness, coatings, surface finishes, etc.

Thanks

Roy

[Mongo]

Did you get the ones I mailed you?



[justforfun]

On 6/28/2025 at 1:14 PM, Mongo said:

Did you get the ones I mailed you?



No

[Tacocat]

On 6/28/2025 at 11:30 AM, justforfun said:

Short update.

I no longer need the blueprints requested, I now have a complete set of working drawings (IGES, STP cad files) for a M3A1 grease gun. These also contain material specs, hardness, coatings, surface finishes, etc.

Thanks

Roy

care to share?

[Blanksguy]

I would be interested as well.......



[Rekraps]

On 10/27/2024 at 12:03 AM, Mongo said:

Here you go

Unbelievable the stuff you have!

[Tacocat]

i am looking for the "working drawings (IGES, STP cad files)" i have cad  would love to nerd out on this.
